Applicable air spring width: 450—900mm
Parallelism of two end after turn-up: ±3mm
Accuracy of two end after turn-up: ±3mm
Displacement accuracy: ±0.5mm
Turn-down and turn-up efficiency: 1 pcs/min

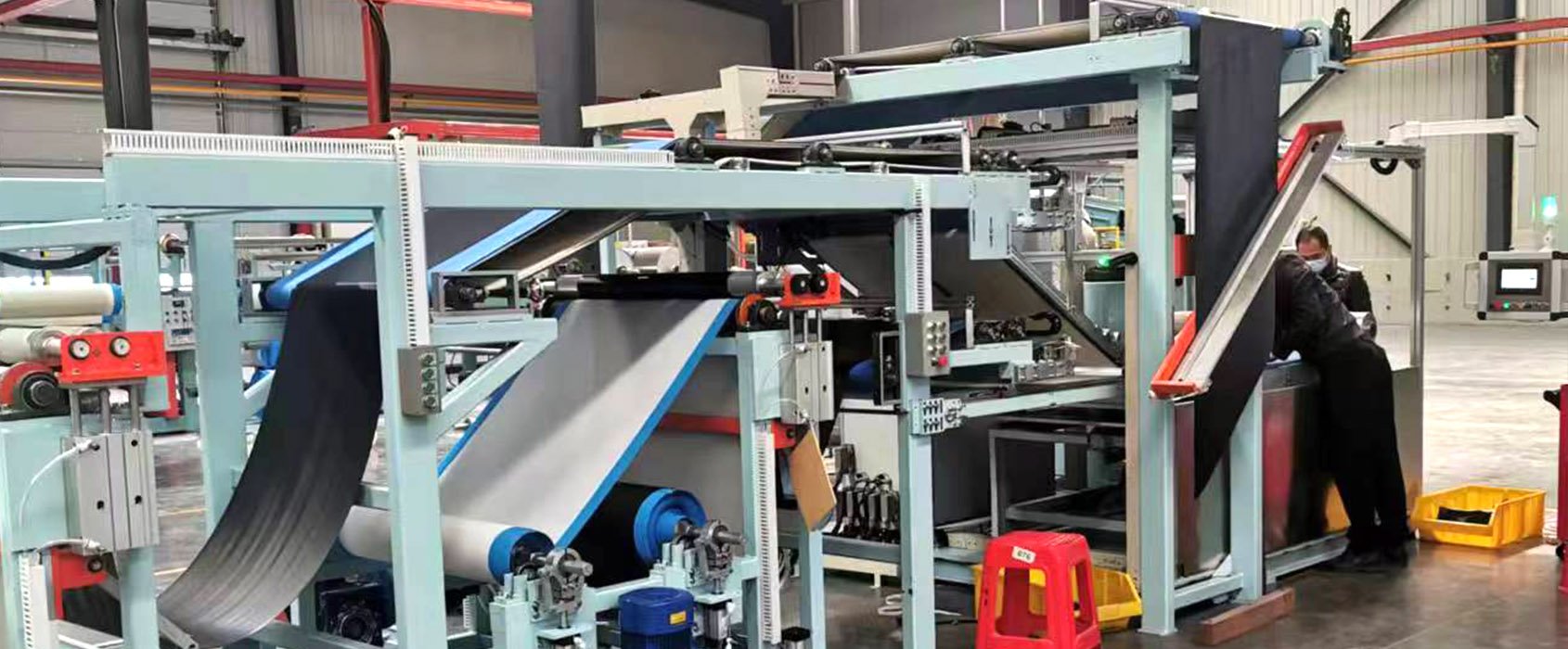

The equipment is mainly used for forming semi-finished rubber air spring. The machine including main base, machine body, spindle, forming table, pressing mechanism, infrared light control mechanism. Before production, the operator selects the corresponding specification of the air spring to be produced on the touch screen, then change the building head as per the corresponding specification.

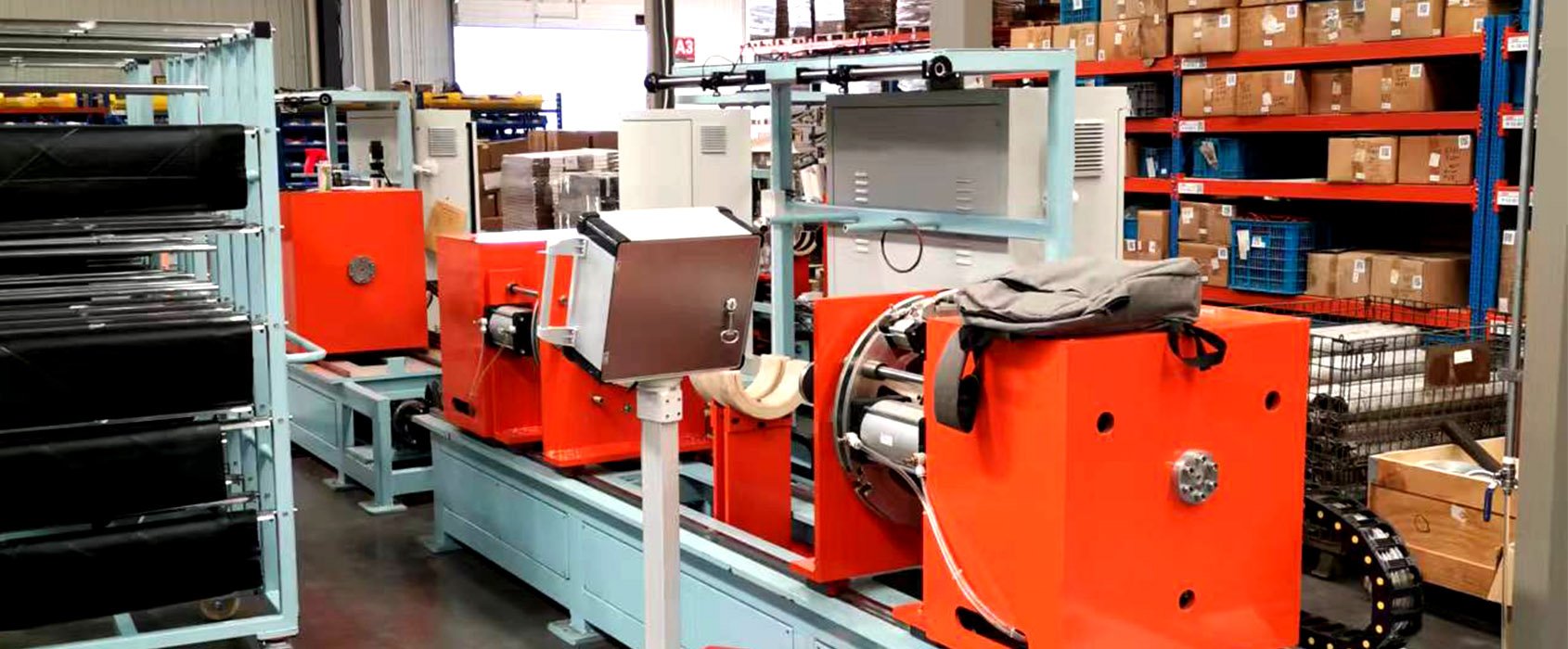

It adopts the single-stage building method (building and turn down & turn up are done on one machine) and automatic start the bladder turn down &turn up. Big ring uses mechanical rollers and the double-folded drum head to proceed the turn-up.
The fatigue testing machine is to acquire relatively real longevity of air spring by simulating the working state of real vehicles. It is mainly used for testing the durability, load fatigue, reciprocating fatigue, fatigue life, dynamic stiffness, static stiffness and etc,. of the air suspension.

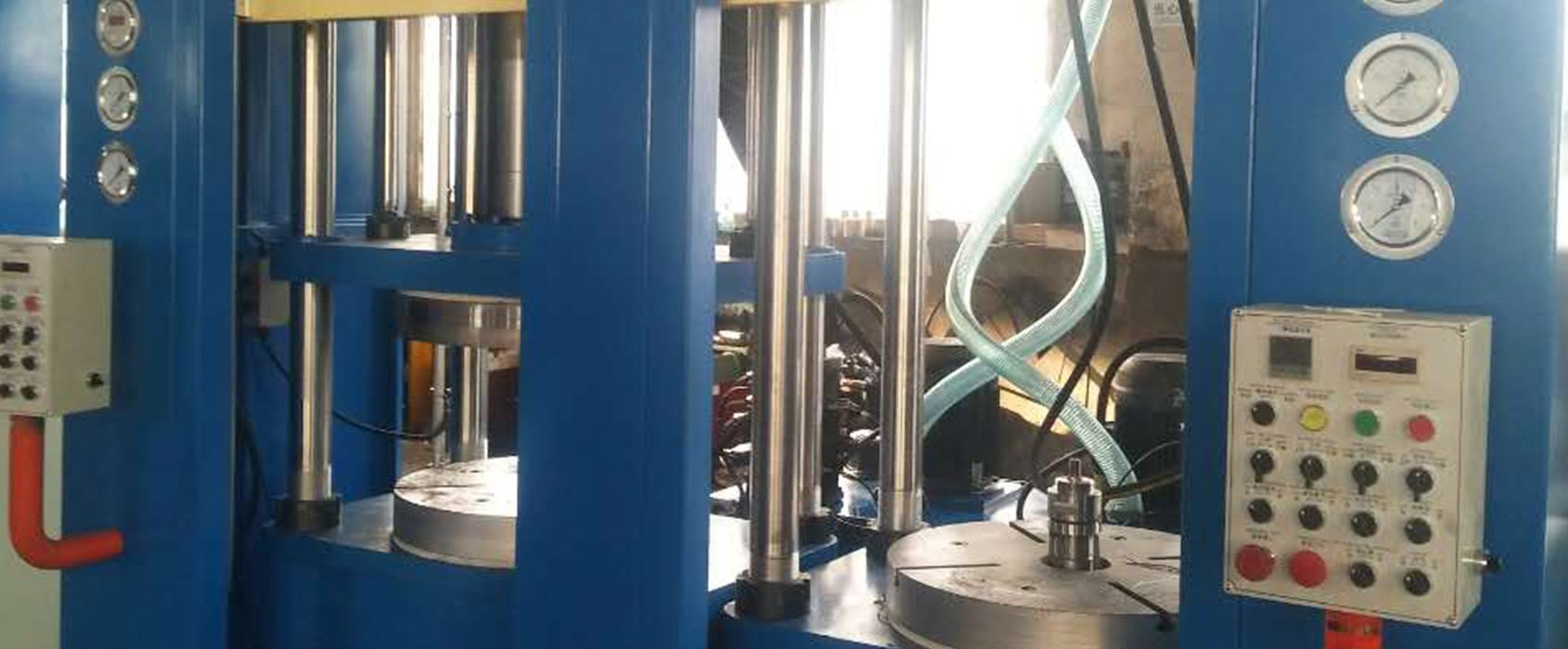

Four-column type structure, main cylinder is located at the top of the press.
PLC control，automatic mold opening, automatic ejection, automatic counting, with auto/manual control transfer function, etc.
Steam heating, steam pressure ≤ 0.85mpa;
With the central mechanism and air inlet and outlet system, the bladder vulcanization can be used to improve the vulcanization efficiency.
