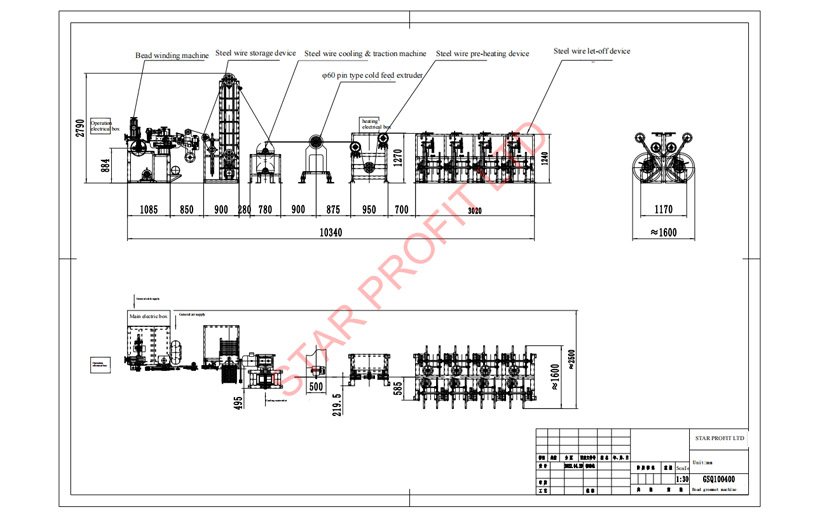

| Main Technical Parameters of GSQ100400 Bead Grommet Machine | |||
| Part 1 Main Technical Parameters | |||
| No. | Item | Specifications/Description | Remarks |
| 1 | Applicable bead sizes | φ100mm-φ400mm | Inner diameter of bead |
| 2 | Winding quantity | Wind 1-3 bead per time | approx. 12-36 beads/min User bead structure: 2*2; 2*3 |

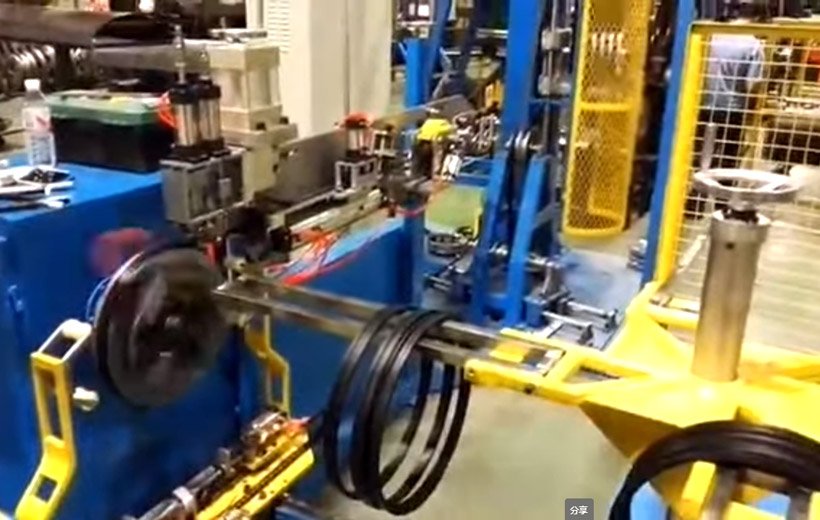

| 3 | Winding head | Includes wire feeding device, pre-bending device, cutter, wire pressing devce, winding disc | One winding disc to be mounted on the main machine, other 5 winding discs are optional. If needed, they will be delivered together with machine Winding disc sizes: ① 136.50mm, ② 138.00mm, ③ 208.00mm, ④171.00mm, ⑤ 261.00mm ⑥ 159.50mm |
| 4 | Steel wire storage device | With cushion mechanism, tension control mechanism, wire storage automatic monitoring mechanism | Steel wire storage depends on traction speed |
| 5 | Cooling and traction device | This device is consisted of two groups of cooling and traction rolls. The cooling water is inlet for circulation via rotary joint. | Roll diameter: φ450mm Traction speed: Max: 60m/min |
| 6 | Extruder | φ60 pin type cold feed extruder | Screw diameter: φ60mm Q-ty: 1 set 22kw, AC415V, 50HZ Srew diameter: φ60mm L/D ratio: 12:1 Screw Max rotation speed: 80rpm Max. extrusion capacity: 160kg/h (open head) 3-channel TCU to control head, barrel and screw |
| 7 | Pre-heating device | Consisted of three groups of pre heating wheels | With heating transformer, temperature at 60-80℃ adjustable |
| 8 | Steel wire let-off device | 6 stations | The spool of steel wire rolls are provided by the user.The user should provide the spool connection dimensions. |
| 9 | Powever | AC415V 50HZ 3 phases, 4 wires | / |
| 10 | Air supply | 5～6kgf/cm² | / |
| 12 | Water supply | 3kgf/cm² | / |
| 13 | Main machine color | RAL6018 | / |
| 14 | Electrical control box color | RAL7035 | / |
| Part 2 Brand of Main out-purchased components | |||
| No. | Item | Brand | |
| 1 | Reducer | Chinese famous brand | |
| 2 | Air cyclinder and main pneumatic components | AirTAC | |
| 3 | PLC | Delta | |
| 4 | HMI | Delta | |
| 5 | VFD | Delta | |
| 6 | Main low-voltage electrical components | Schneider | |
| 7 | Servo motor | Delta | |
| 8 | Optoelectronic switch /proximity switch | OMRON | |
