Taking out from the top

Inquiry Now

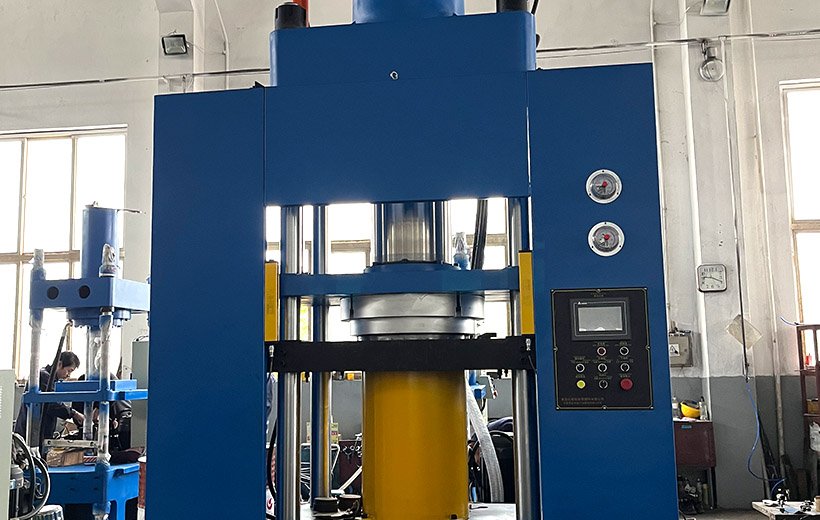

Main structure and features

Four-column type structure, main cylinder is located at the top of the press.

PLC control，automatic mold opening, automatic ejection, automatic counting, with auto/manual control transfer function, etc.

The machine is equipped with template side opening device (template/mold fixing seat, supporting seat, track and side-pulling cylinder, etc.).

Crimping workpiece height：700mm

Crimping workpiece diameter：313mm

Side cylinder diameter：φ63mm*2

Ejecting cylinder diameter：Φ50mm

Motor power；7.5KW

No.	Item	Brand	Country
1	PLC	Taida	Taiwan
2	Touch screen	Taida	Taiwan
3	Intermediate relay	Omron	Japan
4	Automatic air switch	Schneider	French
5	A.C. contactor	Schneider	French
6	Amphenol connector	Quyi	China make
7	Motor	Changzheng	China make
8	Direction control valve, solenoid valve	Jinyouya	China make
9	Oil pump	Taijia	China make
10	Sealing ring	Tulaoge	China make
