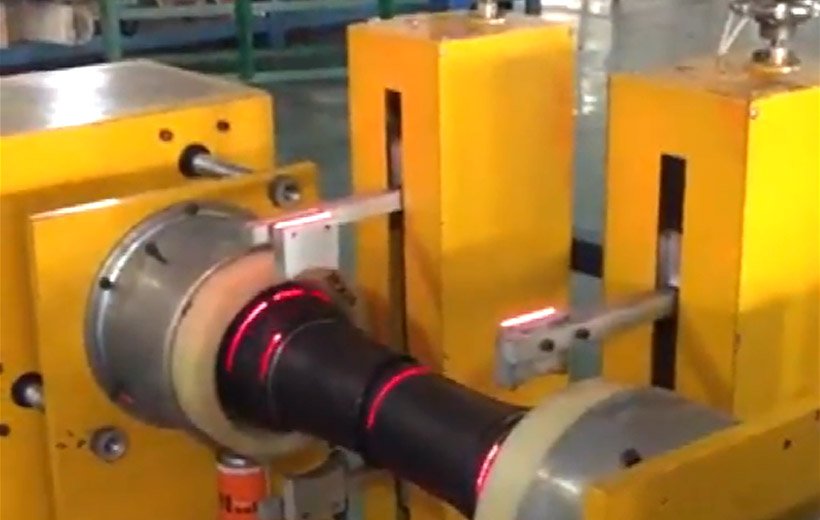

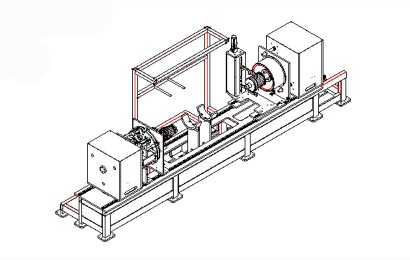

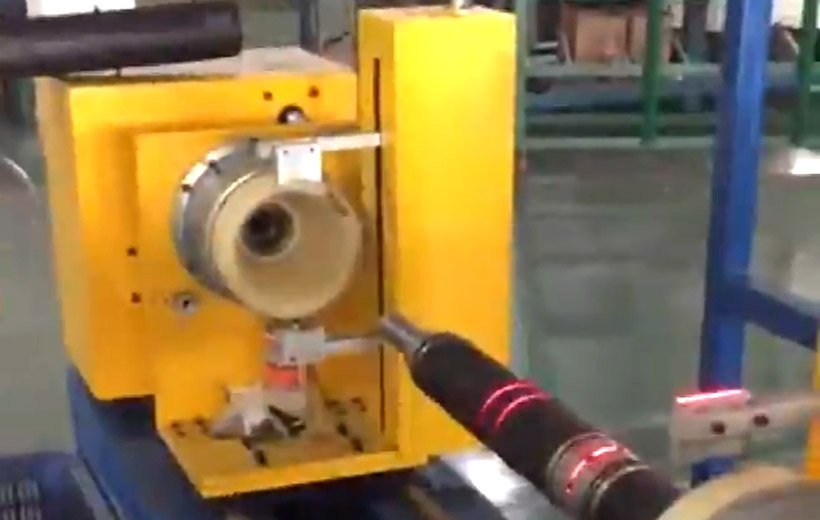

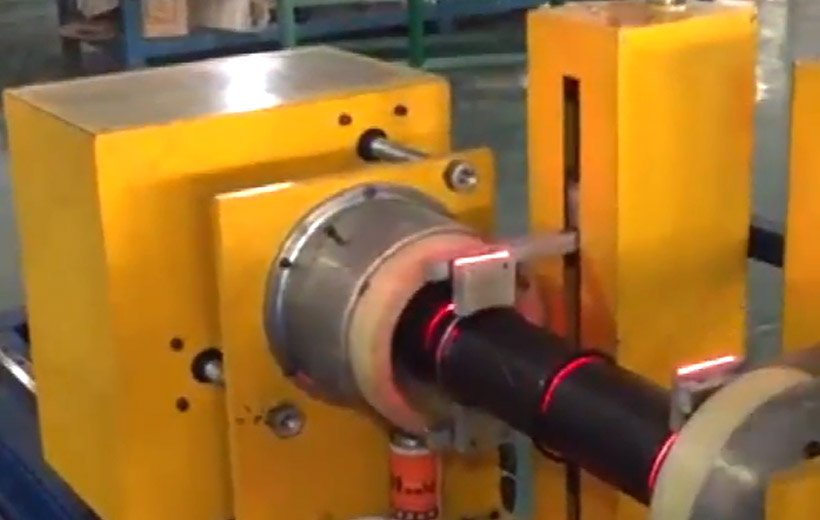

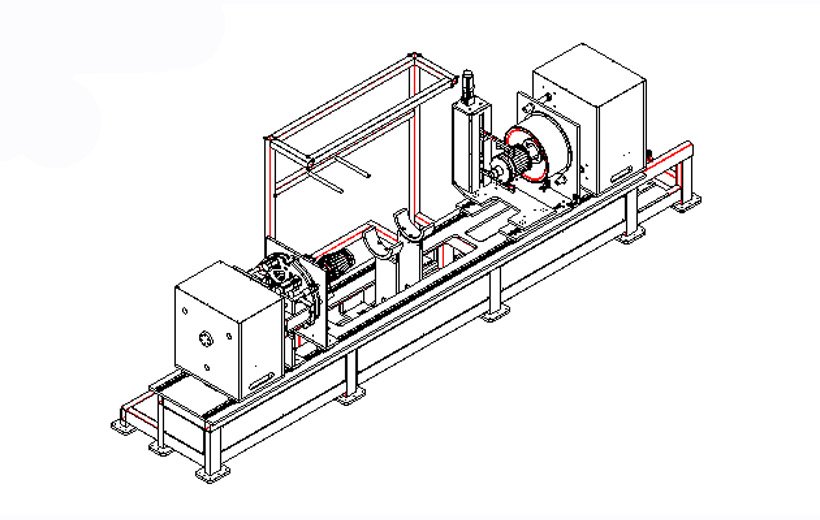

Turn-up Machine

  • Total power of the machine: 3KW

  • Power:380V

  • Applicable drum head diameter range: 60—30mm

  • Applicable middle ring diameter: 76—175mm

  • Applicable ends ring diameter: 70—140mm

Inquiry Now

Main structure and features

Machine dimension: L2800*W1350*H1400mm

Applicable air spring width: 300—500mm

Parallelism of two end after turn-up: ±3mm

Accuracy of two end after turn-up: ±3mm

Turn-down and turn-up efficiency: 2 pcs/min

Specification

No.

Item

Brand

1.

PLC

Mitsubishi

2.

Touch screen

Mitsubishi

3.

Guide rail

Hiwin

4.

Air cylinder

AIRTAC

5.

Solenoid valve

AIRTAC
